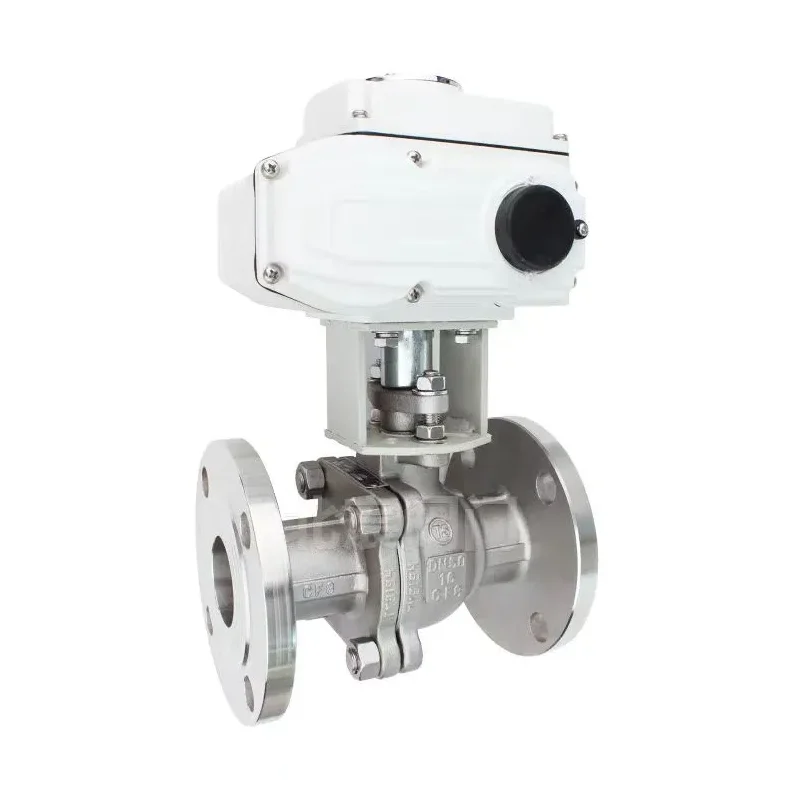

Fais Hlau Stainless Hlau Flange Pob Valve

Lub Electric Stainless Hlau Flange Pob Valve tsim los ntawm peb Shengshi Huagong yog ib lub tshuab automated tswj valve tsav tsheb. Nws tau txais txiaj ntsig zoo stainless hlau valve lub cev thiab flange kev sib txuas kev tsim qauv. Nws yog dav siv nyob rau hauv high-siab, siab-kub lossis corrosive Media Pipelines hauv cov roj av, tshuaj, khoom noj kom ua tiav cov chaw taws teeb thiab cov kev tswj hwm.

Xa lus nug

Product Description

Lub cev lub cev / pob ntawm peb cov hluav taws xob hluav taws kub flange pob valve yog tsim los ntawm corrosion ntawm corrosion ntawm corrosion tsis kam thiab kub compressive zog; Cov khoom sealing ntawm cov khoom lag luam no yog PTFE (polytetrosraethylene, ntawm qhov twg lub tshuab hlau nyuaj yog tsim nyog rau cov kev mob siab thiab tuaj yeem ua kom xoom tsis to xoom.

Tom qab tau txais lub teeb liab tswj, hluav taws xob Actuator ntawm hluav taws xob steel flange lub pob valve kom ua tiav kom tiav (nruab nrab kev kaw (kaw tag nrho (txiav tawm tag nrho). Txhawb nqa cov kho Actuatators tuaj yeem ua tiav 0-90 ° Stepress hloov kho thiab tswj kev txaus.

Cov khoom lag luam zoo

Lub neej ntev: stainless hlau khoom siv + hnav-resistant foob, kev pabcuam lub neej ntau dua 100,000 zaus.
Ntse: Txhawb cov chaw taws teeb tswj / PLC / DCS system sib xyaw.
Xoom so: V-puab pob tsim + Ob chav Foob, qib sib sau mus txog qib nce toj.
Kev Tu Yooj Yim: Modular tsim, tsis tas yuav rhuav tshem lub cev valve los hloov lub foob.

Kev Ntsuas Cov Qauv:

Parameter qeb	Cov lus qhia ntxaws ntxaws
Lub cuab yeej siv lub chaw	304 Stainless Hlau / 316 Stainless Hlau / 316L Stainless Hlau (yeem)
Txoj kev sib txuas	Flange Kev Txuas (Txuj Ci: GB / T, Ansi, Din, JIS, thiab lwm yam)
Flange Sealing nto	RF (tsa ntsej muag) / ff (tag nrho lub dav hlau) / RTJ (Nplhaib Sib Koom Tes)
Nominal Inch (DN)	DN15 ~ Dn500 (Txhawb kev customized tsis-txheem diam)
Theem siab	Pn1.6, pn2.5, PN4.0, PN6.4MPA (lossis chav kawm hauv chav kawm (hauv chav kawm300, thiab lwm yam)
Siv tau kub	-29 ℃ ~ + 200 ℃ (PTFE Foob) -29 ℃ ~ + 450 ℃ (Lub Cim Hluav Taws Xob
Nruab Nrab Hom	Dej, chav dej, roj, acidic thiab alkaline kua, gases (corrosive xov xwm yuav tsum yog qhia)
Tsav Hom	Fais Actuator (Phau ntawv thiab Pneumatic yeem)
Lub zog muab hluav taws xob	AC220V / AC380V / DC24V (lwm yam hluav taws xob tuaj yeem yog customized)
Tswj Teeb Liab	Hloov Hom: Passive sib cuag Hloov Hom: 4-20mA / 0-10V
Kev Tiv Thaiv Qib	IP67 / IP68 (WILLPROOF thiab Waterproof)
Tawg tawg-ua pov thawj	EX DⅱBT4 / EX DⅱCT6 (YOOJ YIM)
Ntws cov yam ntxwv	Puv Bore (tsis muaj qhov poob poob) / txo lub hwj chim (chaw txuag)
Khoom siv sealing	PTFE (Polytetrafluoroethylene) / ppl (txhawb polypropylene) / Hlau Zog Fuab
Kev ua kom theem	Ansi Chav VI (Ntses foob) / Ansi Class IV (Foob)
Hloov sijhawm	≤15 vib nas this (nyob ntawm tus qauv ua yeeb yam)
